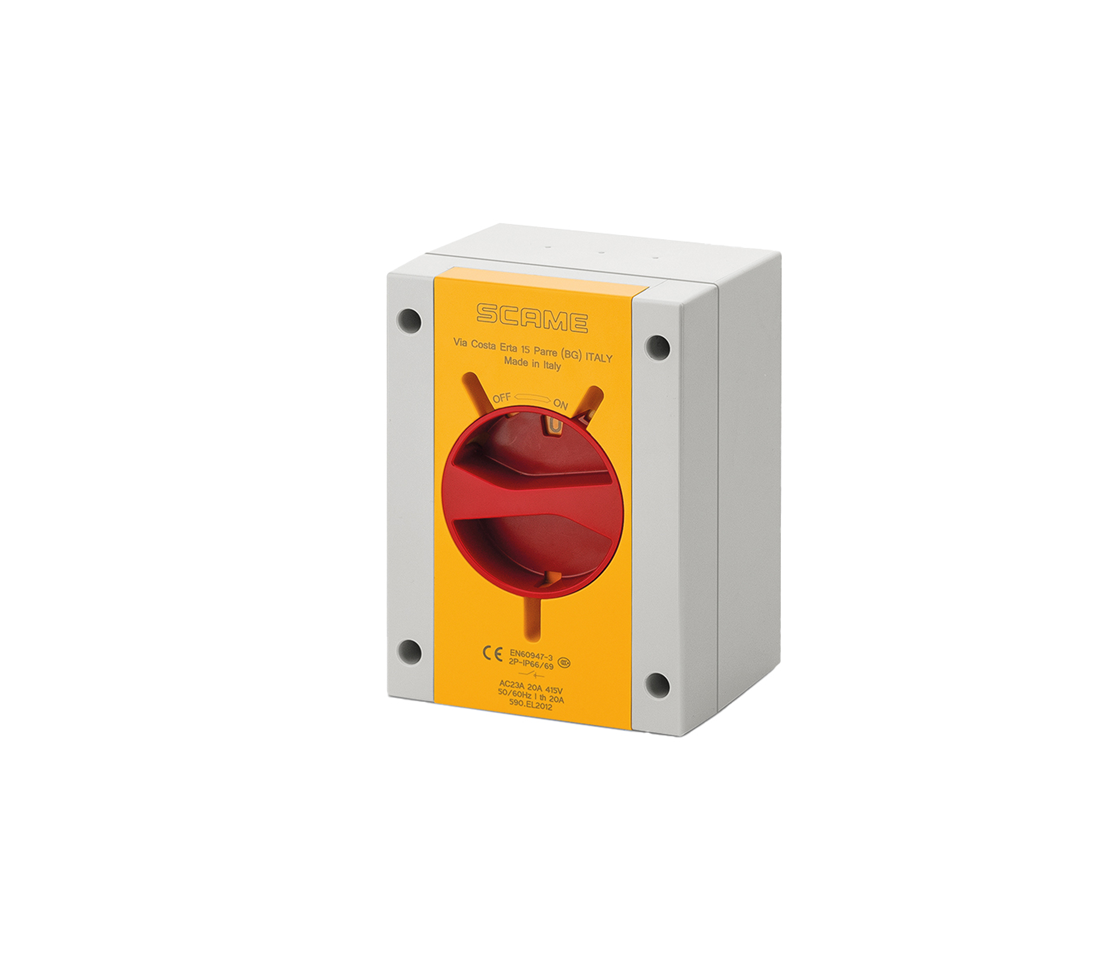

Scame isolating switch

The SWITCH DISCONNECTOR ISOLATORS-TP Series is designed for emergency applications, featuring a durable construction of engineering plastic. It includes a handle of yellow/red for enhanced visibility. This device supports a rated current of 20...63 A. It is engineered with a high protection degree of IP66/IP69 and an impact resistance of IK09, ensuring resilience in demanding environments. The switch disconnector is configured with 2P poles and a Y1 switch size, operating at a rated voltage of 690V. Key features include a surface mounting version, a door interlock, a padlockable handle in the OFF position for up to three padlocks, a reversible base, and break-through cable entries on the bottom side base.

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

Yes

Version as emergency stop installation

Yes

Version as reversing switch

Rated permanent current at AC-21, 400 V

20 A

Rated short-time withstand current lcw

0 kA

Rated operation power at AC-23, 400 V

9 kW

Switching power at 400 V

9 kW

Conditioned rated short-circuit current Iq

10 kA

Motor drive optional

Nein

Motor drive integrated

Nein

Voltage release optional

Nein

Device construction

Complete device in housing

Suitable for floor mounting

Nein

Suitable for front mounting 4-hole

Nein

Suitable for front mounting centre

Nein

Suitable for distribution board installation

Nein

Suitable for intermediate mounting

Nein

Colour control element

Red

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

With pre-assembled cabling

Nein

Degree of protection (IP), front side

IP65
