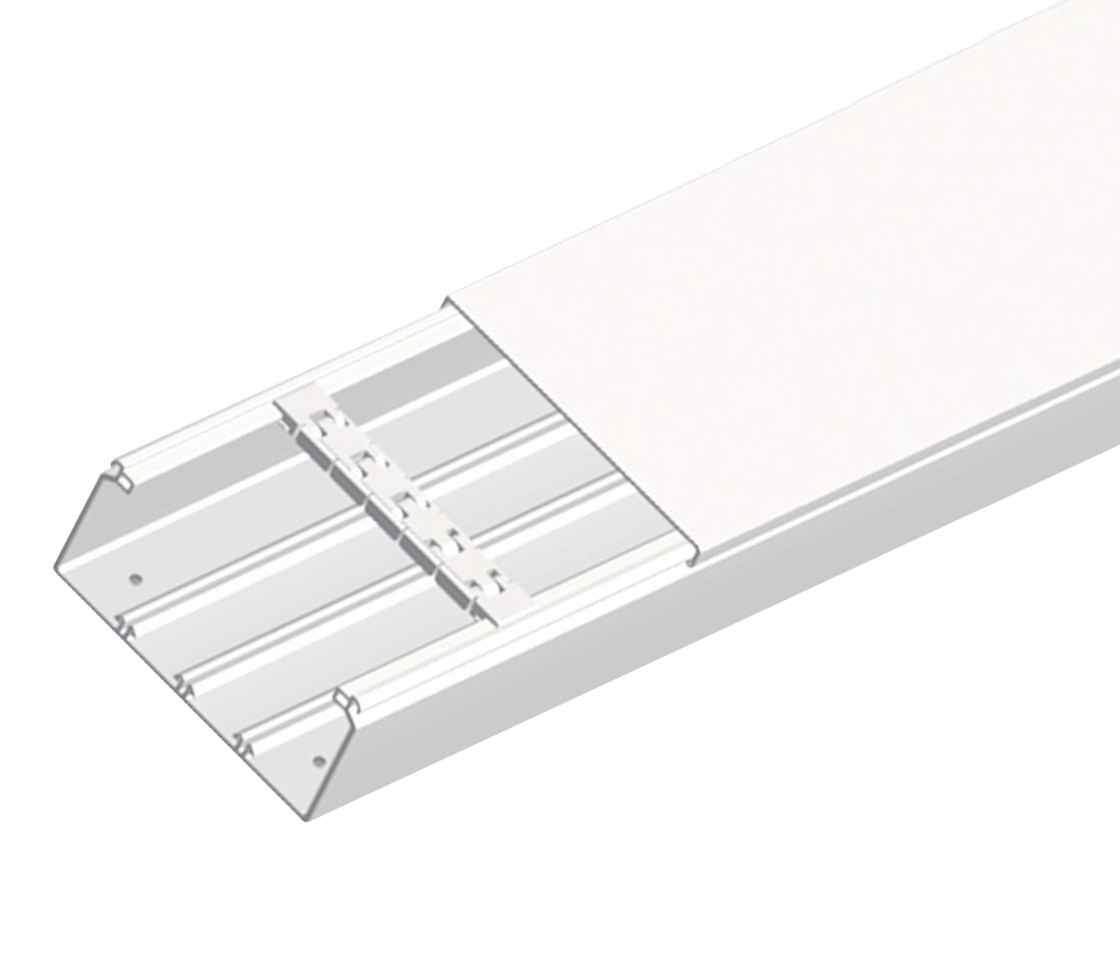

Installation trunking 3m U43X pure white halogenfree

External lid, for distribution, with possibility to mount switches and sockets. Single cover with possibility to make additional compartments by means of a divider. Suitable for outdoor use. Perforated base every 250mm. 1 cable retainer included every 0,5m. Length: 3m. White. Safety: electrical (insulating material, IP4X mounted on wall); mechanical (protection against impacts IK07); and in front of fire (glow-wire test at 960°C; non-flame propagator). Easy mounting: The cover is pressure mounted (no need to slide it). The cable retainer retains the cables and allows for independent access to each circuit. Homogeneity of colours between the trunking and the fittings and adapters. Can be painted. Flexibility to combine a variety of switches and sockets by means of a border and a frame, with or without socket box. Removable divider, pressure mounted.

Length

3000 mm

Material

Plastic

Material quality

Other

Halogen free

Yes

Anti-bacterial treatment

Surface protection

Other

Suitable for circuit integrity

Transparent

RAL-number

9010

Number of permanent partitions

Number of plug-in partitions

Type of fastening

Bottom perforation

Cover model

Loose

With cable fixing clip

Yes

With protective foil

Yes

With duct connector

Delivery on roll

Pre-stamping

Yes

Degree of protection (IP)

IP40

Impact strength

IK07

Operating temperature

-25 °C
