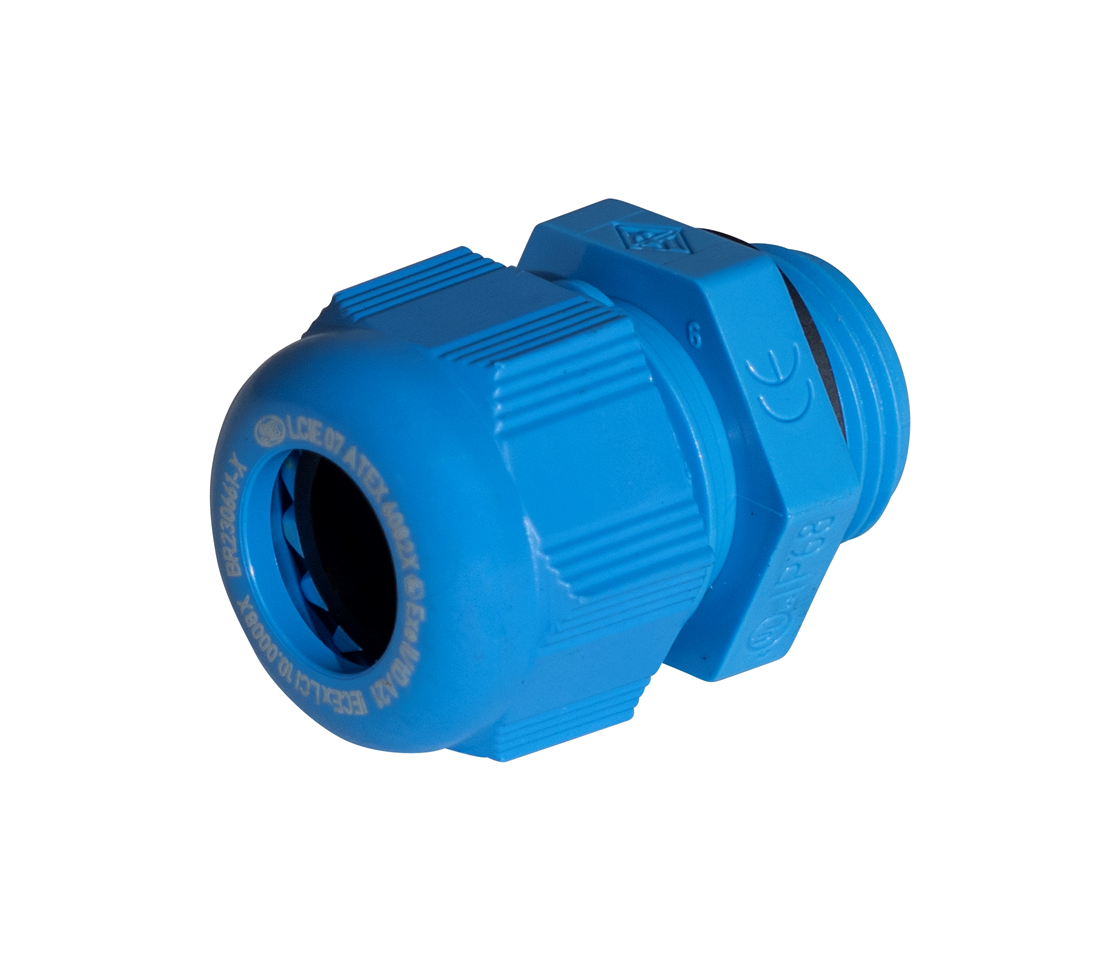

PLICA-TEC K ATEX (M) – Short Thread Cable Gland for Ex Areas
Discover the cold impact resistant PLICA-TEC K ATEX (M) cable gland with short thread from plica, ideal for explosive risk areas. Certified for Equipment Group II and Categories 2 and 3, suitable for gas (G) and dust (D) atmospheres in zones 1, 2, 21, and 22. Made from high-quality polyamide (PA), it ensures durability and robustness. Its black and blue design seamlessly integrates into any environment. With IP68 protection, dust-tight and water-resistant, it operates reliably from -20 to +80 °C. Equipped with a neoprene gasket, halogen-free, it guarantees the highest safety standards.
Pitch thread
1.5 mm
Wrench width
15 mm
Colour
Black
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
No
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-20...+80 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
Yes
For Ex-zone gas
1, 2
For Ex-Zone dust
21, 22
EMC-version
No
Fire behavior
flame resistance UL 94 V2
standard
EN 60079-0 / 60079-7 / 60079-31
interior hot melt adhesive
No
sealing quality
Neopren
37 Artikel
Reset filters
Filter
Item
Thread type
Thread length mm
number opening
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SU in CHFexcl. VAT
3D Modell Cadenas
- Item 935352112Thread type M12Thread length
mm 8number openingSuitable for cable diameter
mm 4...6RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352116Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 6...10RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352117Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 3...8RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352120Thread type M20Thread length
mm 10number openingSuitable for cable diameter
mm 7...14RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352121Thread type M20Thread length
mm 10number openingSuitable for cable diameter
mm 7...12RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352125Thread type M25Thread length
mm 10number openingSuitable for cable diameter
mm 10...18RAL-number 9005AvailabilitySU 25 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352126Thread type M25Thread length
mm 10number openingSuitable for cable diameter
mm 7...14RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352132Thread type M32Thread length
mm 10number openingSuitable for cable diameter
mm 17...24RAL-number 9005AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352140Thread type M40Thread length
mm 10number openingSuitable for cable diameter
mm 17...31RAL-number 9005AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352150Thread type M50Thread length
mm 12number openingSuitable for cable diameter
mm 24.5...37RAL-number 9005AvailabilitySU 10 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352163Thread type M63Thread length
mm 12number openingSuitable for cable diameter
mm 34...47RAL-number 9005AvailabilitySU 5 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352412Thread type M12Thread length
mm 8number openingSuitable for cable diameter
mm 1.8...5RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352416Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 3.5...7RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352417Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 2.5...6RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352420Thread type M20Thread length
mm 10number openingSuitable for cable diameter
mm 6...12RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352421Thread type M20Thread length
mm 10number openingSuitable for cable diameter
mm 4...10RAL-number 9005AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352425Thread type M25Thread length
mm 10number openingSuitable for cable diameter
mm 8...16RAL-number 9005AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352432Thread type M32Thread length
mm 10number openingSuitable for cable diameter
mm 12.5...21RAL-number 9005AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352440Thread type M40Thread length
mm 10number openingSuitable for cable diameter
mm 15...24RAL-number 9005AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352450Thread type M50Thread length
mm 12number openingSuitable for cable diameter
mm 18...31RAL-number 9005AvailabilitySU 10 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352463Thread type M63Thread length
mm 12number openingSuitable for cable diameter
mm 26...39RAL-number 9005AvailabilitySU 5 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352716Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 6...10RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352717Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 3...8RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352720Thread type M20Thread length
mm 10number openingSuitable for cable diameter
mm 7...14RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352725Thread type M25Thread length
mm 10number openingSuitable for cable diameter
mm 10...18RAL-number 5012AvailabilitySU 25 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352732Thread type M32Thread length
mm 10number openingSuitable for cable diameter
mm 17...24RAL-number 5012AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352740Thread type M40Thread length
mm 10number openingSuitable for cable diameter
mm 17...31RAL-number 5012AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352750Thread type M50Thread length
mm 12number openingSuitable for cable diameter
mm 24.5...37RAL-number 5012AvailabilitySU 10 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352763Thread type M63Thread length
mm 12number openingSuitable for cable diameter
mm 34...47RAL-number 5012AvailabilitySU 5 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352812Thread type M12Thread length
mm 8number openingSuitable for cable diameter
mm 1.8...5RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352816Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 3.5...7RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352817Thread type M16Thread length
mm 10number openingSuitable for cable diameter
mm 2.5...6RAL-number 5012AvailabilitySU 50 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352826Thread type M25Thread length
mm 10number openingSuitable for cable diameter
mm 6...12RAL-number 5012AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352832Thread type M32Thread length
mm 10number openingSuitable for cable diameter
mm 12.5...21RAL-number 5012AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352840Thread type M40Thread length
mm 10number openingSuitable for cable diameter
mm 15...24RAL-number 5012AvailabilitySU 20 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352850Thread type M50Thread length
mm 12number openingSuitable for cable diameter
mm 18...31RAL-number 5012AvailabilitySU 10 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 935352863Thread type M63Thread length
mm 12number openingSuitable for cable diameter
mm 26...39RAL-number 5012AvailabilitySU 5 StkPrice / SU in CHF excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
