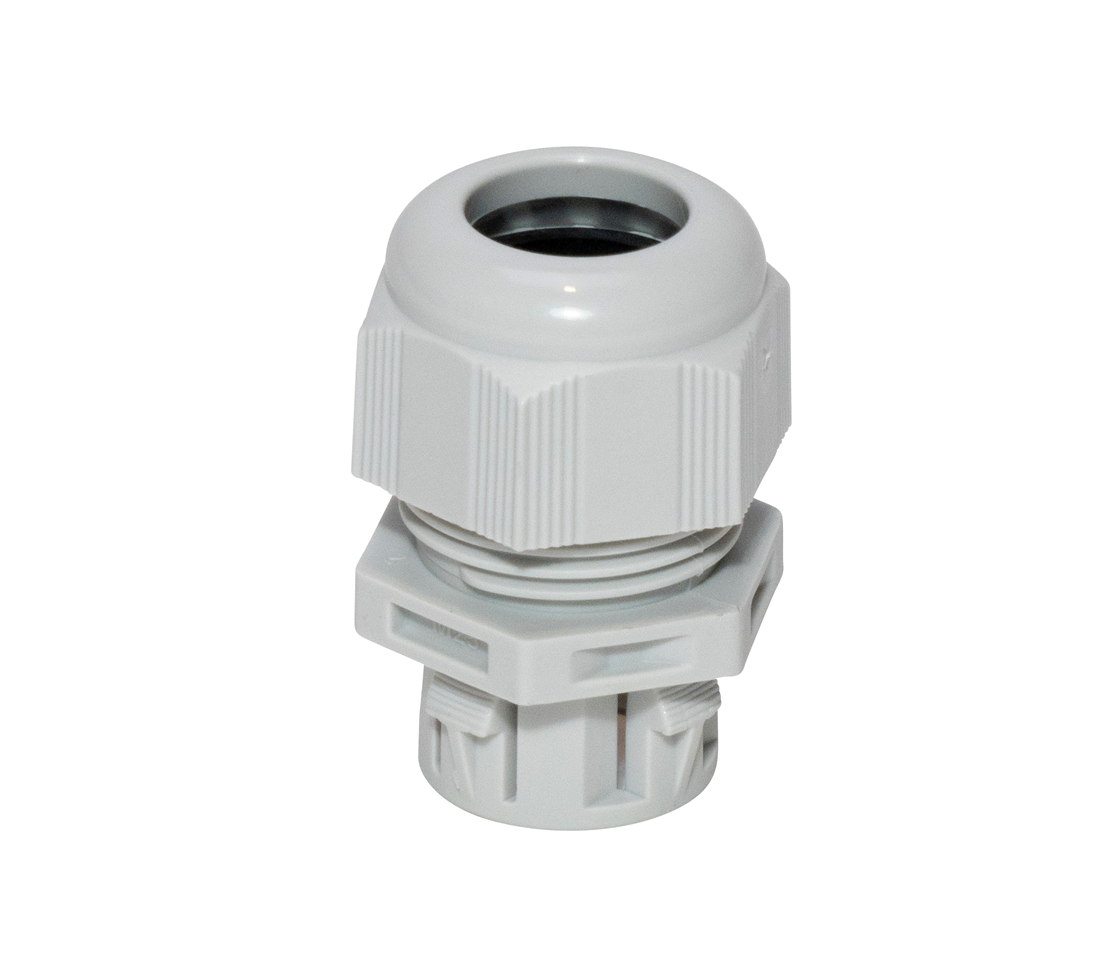

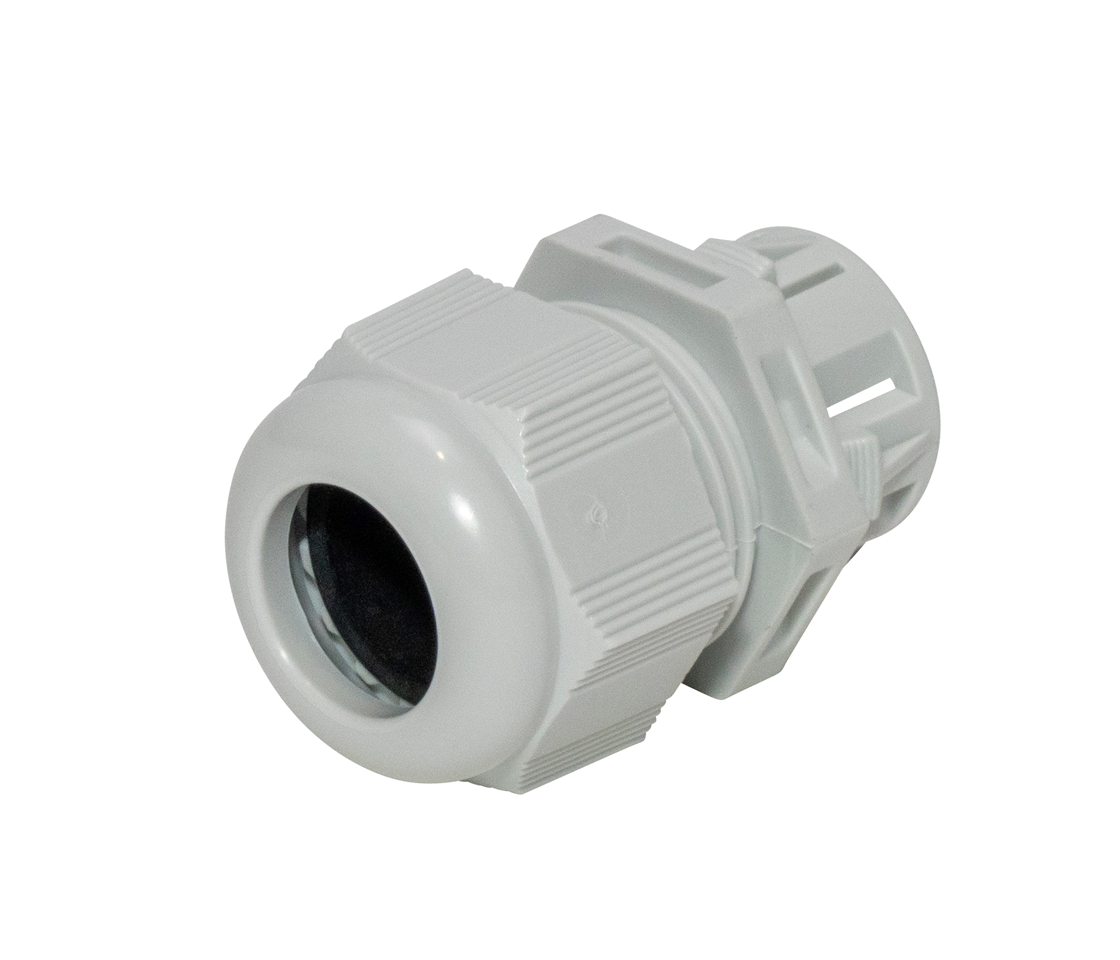

Cable gland light grey Click-Tec M25 (9-18) PU=25 pcs

Effortlessly enhance your automation level with the innovative cable gland from PLICA Click-Tec. This cable gland, a masterpiece of efficiency, is specifically designed to significantly reduce the workload. Installed with a simple click system, it offers a quick, secure, and uncomplicated solution, especially in tight spaces. The unique design of PLICA Click-Tec allows for rapid assembly without the need for a locknut, making installation even more efficient. Moreover, it is ideally suited for wall thicknesses of 1.5 to 3 mm. Discover on our website PLICA Click-Tec the revolutionary way to mount cable glands and experience how it simplifies and speeds up your projects.

Pitch thread

1.5 mm

Colour

Grey

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Glass-fibre reinforced

Shock resistant

Bend radius protection/trumpet flare

With locknut

Flat cable coupling

Separable screw gland

Type of sealing

Sealing ring

Multi seal area

Operating temperature

-40...+100 °C

Degree of protection (IP)

IP65

Halogen free

UV-resistant

Explosion-tested version

For Ex-zone gas

None

For Ex-Zone dust

None

EMC-version

Fire behavior

flame resistance UL 94 V2

standard

EN 60423

interior hot melt adhesive

1 Artikel

Item

Thread type

Nominal thread size metric/PG

number opening

Thread length mm

Suitable for cable diameter mm

RAL-number

Availability

Price / SUexcl. VAT

3D Modell Cadenas

Item 963200053

Thread type Metric

Nominal thread size metric/PG 25

number opening

Thread length
mm

Suitable for cable diameter
mm 9…18

RAL-number 7035

Availability

SU 25 Stk

Price / SU excl. VAT

3D Modell Cadenas
Etiketten drucken

Add item to the shopping cart

This item is available in 17 other versions.
