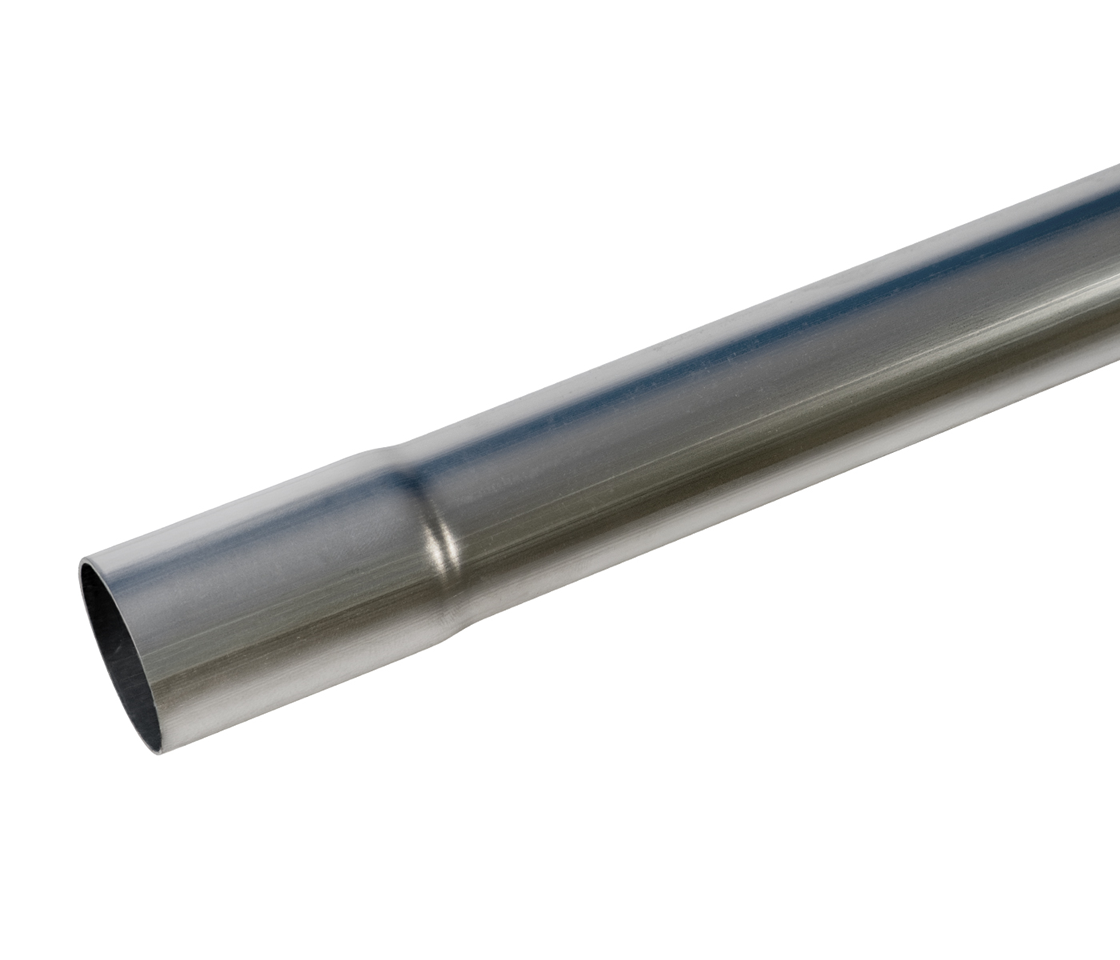

PLICALU TOP-RAPID aluminium conduit one end expanded

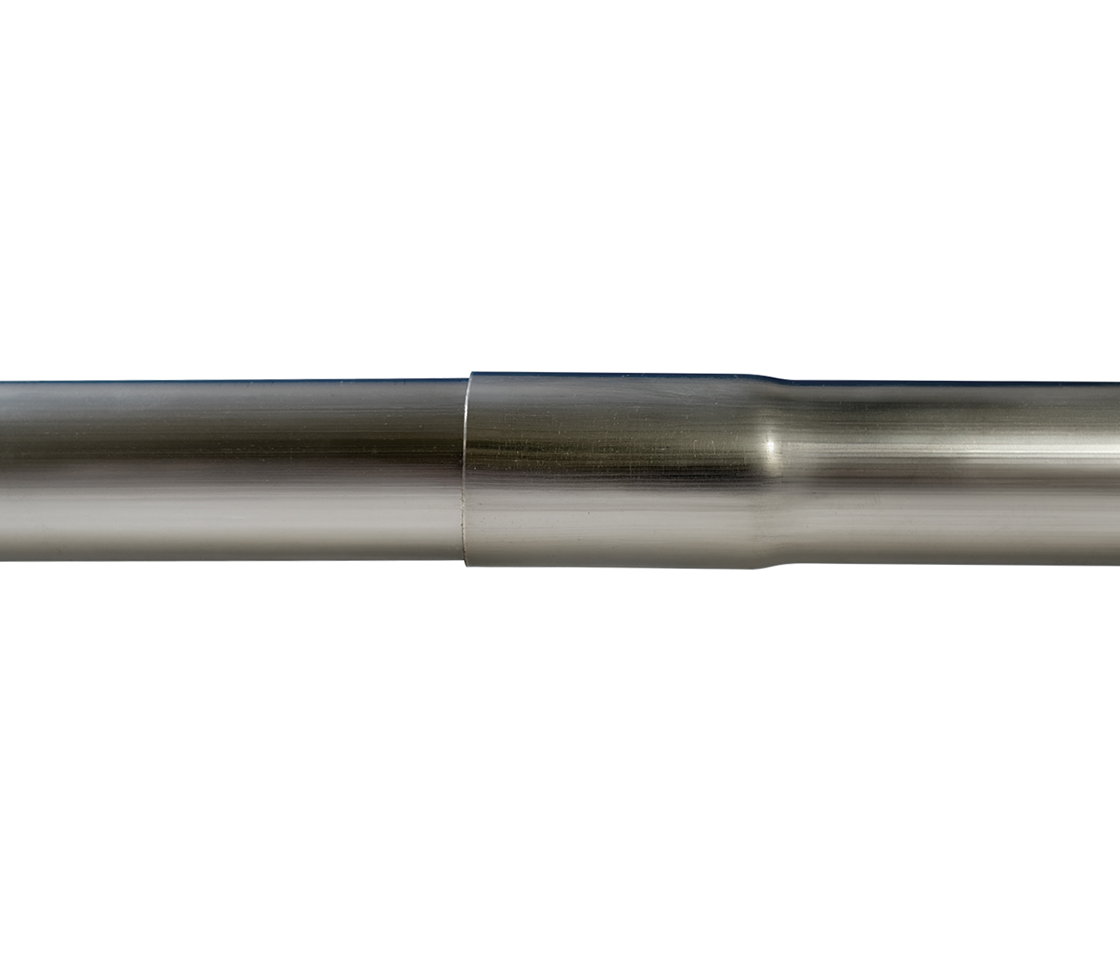

The PLICALU TOP-RAPID aluminium conduit is already expanded at one end and therefore enables a direct conduit connection without a separate coupler. Two conduits can simply be pushed together, making installation faster, cleaner and requiring fewer accessories.
The rigid aluminium conduit provides a stable cable protection solution for demanding installations. It reliably protects cables against mechanical stress and is suitable for robust connections indoors and outdoors.
Application:
For cable protection in surface-mounted and flush-mounted installations, concrete installations, machine and plant installations, outdoor installations and other demanding routing areas.
Material
Aluminium
Material quality
Other
Surface protection
Other
Quality of surface coating
Other
Surface polished
Yes
Surface brushed
No
Model
Rigid
Connection 1
Other
Connection 2
Other
Colour
Aluminium
Flush-mounted installation
Yes
Surface mounting
Yes
Suitable for concrete installation
Yes
Machine and systems installation
Yes
Suitable for subsurface installation (bitumen, hot asphalt)
Yes
Suitable for subsurface installation (screed)
Yes
Outdoor installation
Yes
Installation on wood
Yes
Suitable for hollow wall installation
Yes
Suitable for underground installation
Yes
Compressive strength class
Heavy (class 4)
Operating temperature
-45...+250 °C
series
PLICALU TOP-RAPID
Halogen free
Yes
standard
EN 61386-2-1
6 Artikel
Reset filters
Filter
Item
Inner diameter mm
Outer diameter mm
nominal size
Availability
SU
Price / SU in CHFexcl. VAT
- Item 134700120Inner diameter
mm 16.8Outer diameter
mm 20nominal sizeAvailabilitySU 51 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart - Item 134700125Inner diameter
mm 21.8Outer diameter
mm 25nominal sizeAvailabilitySU 30 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart - Item 134700132Inner diameter
mm 28.8Outer diameter
mm 32nominal sizeAvailabilitySU 30 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart - Item 134700140Inner diameter
mm 36.8Outer diameter
mm 40nominal sizeAvailabilitySU 15 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart - Item 134700150Inner diameter
mm 46.8Outer diameter
mm 50nominal sizeAvailabilitySU 15 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart - Item 134700163Inner diameter
mm 59.4Outer diameter
mm 63nominal sizeAvailabilitySU 15 mPrice / SU in CHF excl. VATNewEtiketten druckenAdd item to the shopping cart
