Joint clamp for wire mesh cable tray

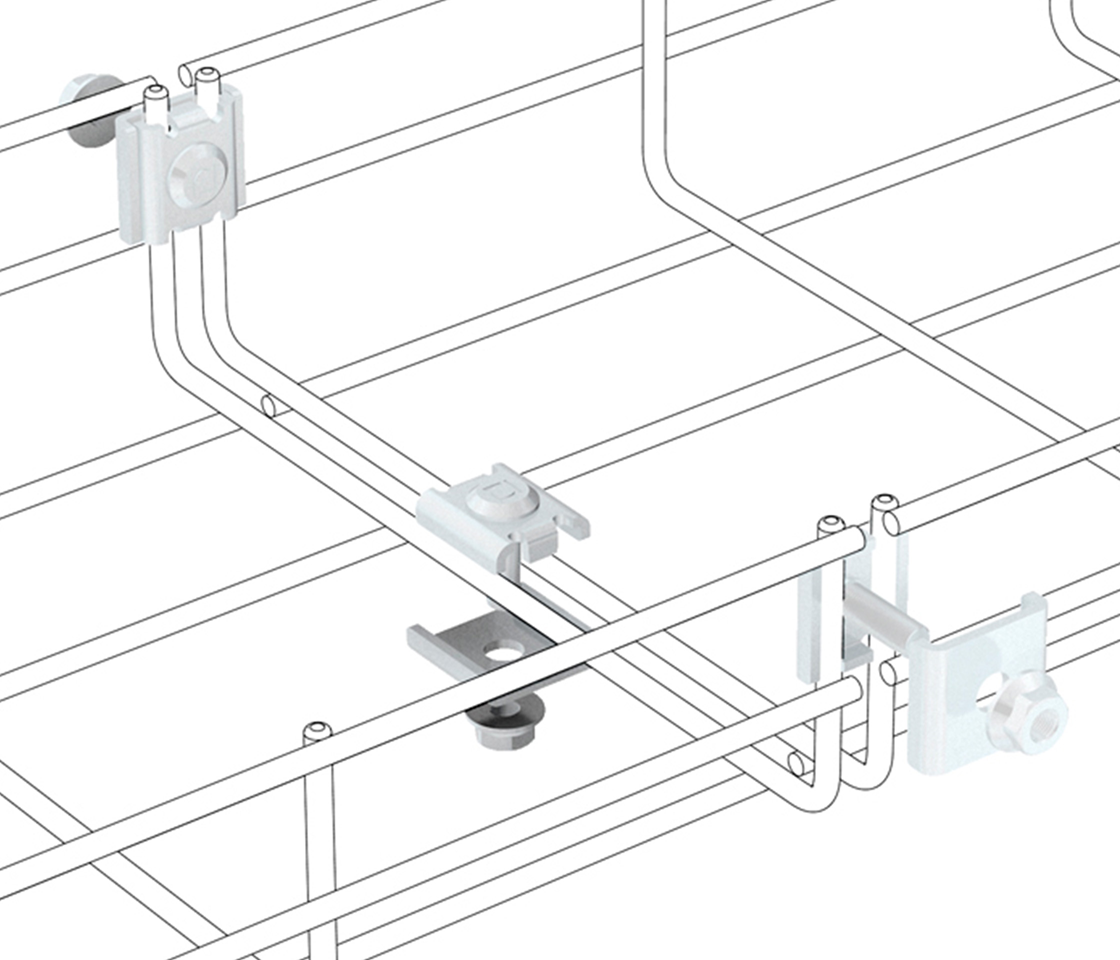

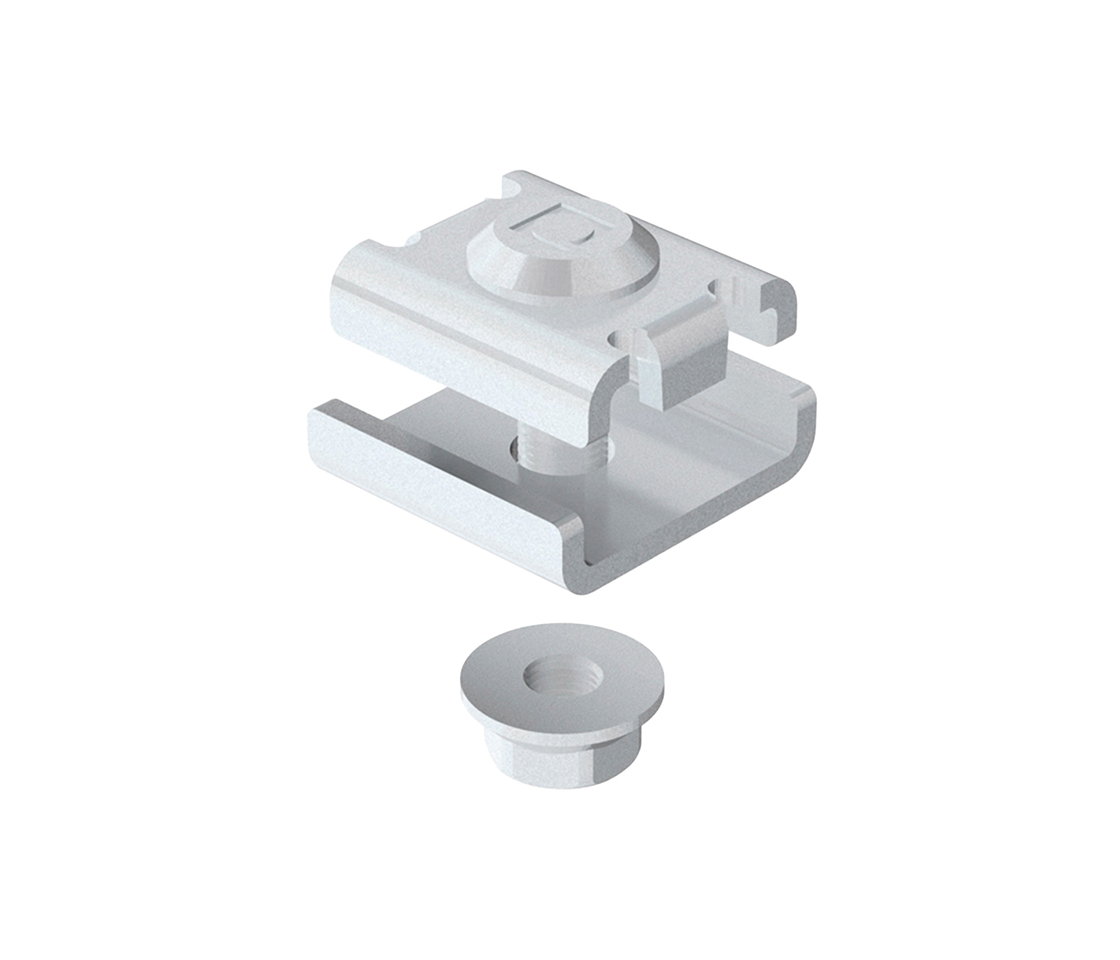

The joint clamp for wire mesh cable tray securely and firmly connects two sections of a Rejiband cable tray. The steel component consists of a captive screw, connecting plate and nut. It simplifies installation at the joint and provides a mechanically strong connection for Rejiband cable support systems in electrical installations, building technology, infrastructure and industrial applications.
Model
Longitudinal joint
Hinged joint horizontal
Yes
Hinged joint vertical
Yes
Type of connection
Screw connector
Suitable for wire mesh tray
Yes
Suitable for cable ladder
Nein
Suitable for cable tray
Nein
Suitable for circuit integrity
Nein
Material
Steel
Stainless steel, pickled
Nein
Colour
Grey
1 Artikel
Reset filters
Filter
Item
Suitable for cable management system width mm
Suitable for cable management system height mm
Suitable for mesh cable tray filament mm
Length mm
Availability
SU
Price / SU in CHFexcl. VAT
