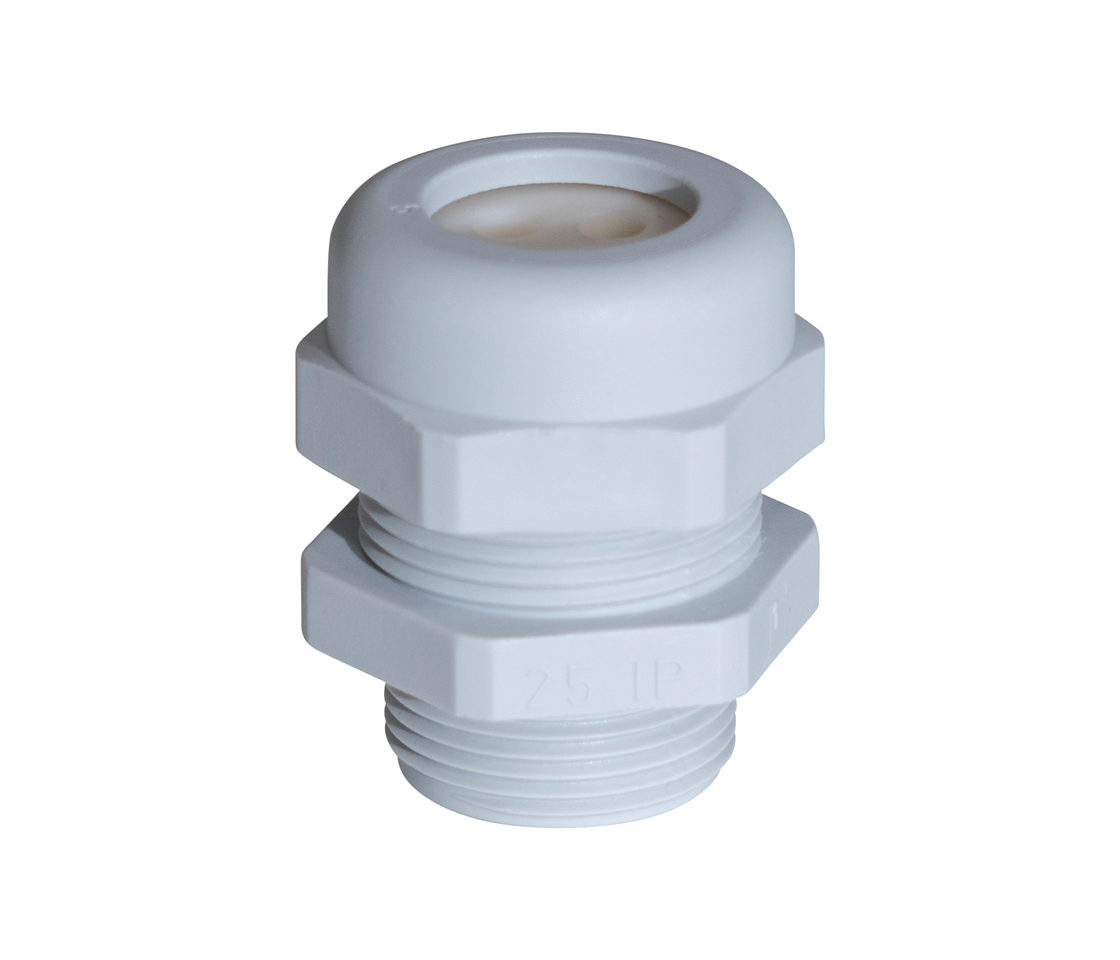

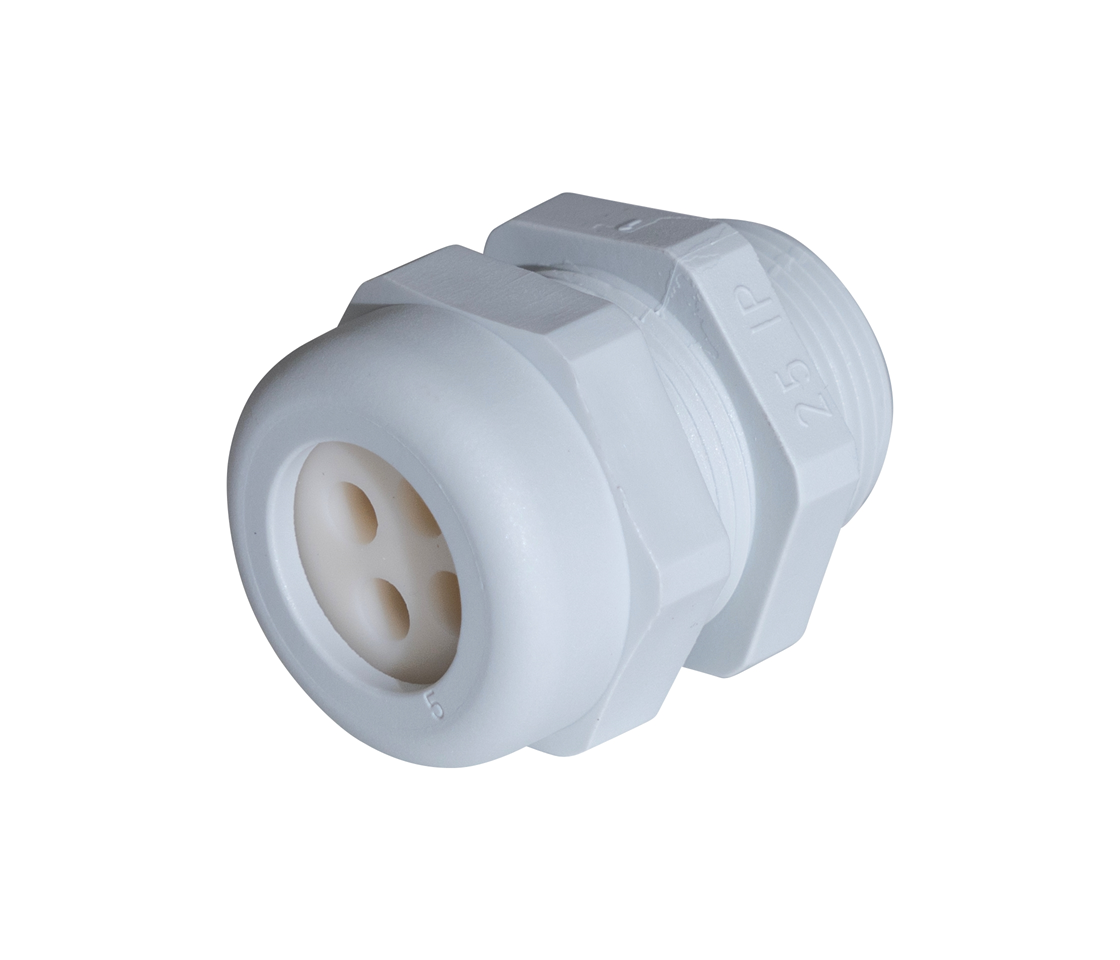

CG MULTI PA6/GFK 20pc WADI MULTI K M25 4x5mm grey
Discover the space-saving solution for mounting two or more cables with the PLICA WADI Multi-K cable gland. This innovative gland is perfect for situations where space is at a premium, allowing for efficient and compact cable organization. With its integrated twist protection, a secure and reliable installation is ensured. The cable gland holes are closed and can be pierced as needed, offering flexibility to accommodate different cable diameters.
Pitch thread
1.5 mm
Wrench width
33 mm
Colour
Grey
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
Yes
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
Yes
Operating temperature
-30...+120 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
Fire behavior
flame resistance UL 94 V2
standard
EN 60423
interior hot melt adhesive
No
sealing quality
Tefabloc
1 Artikel
Item
Thread type
Nominal thread size metric/PG
number opening
Thread length mm
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SUexcl. VAT
3D Modell Cadenas
- Item 905351255Thread type MetricNominal thread size metric/PG 25number opening 4Thread length
mm 11Suitable for cable diameter
mm 4...5RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell Cadenas
This item is available in 45 other versions.
