Switch-disconnectors 100…1600 A, 3N+P

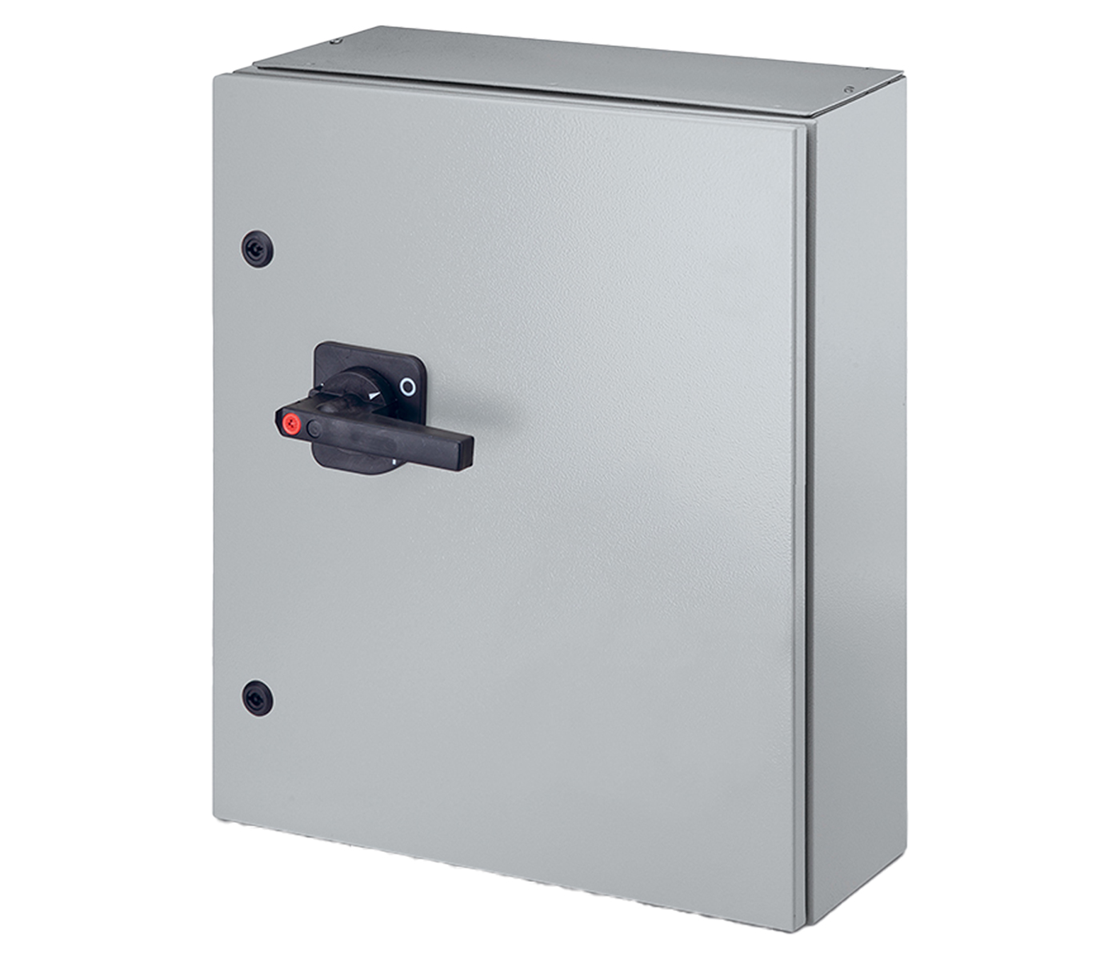

The SCAME 590.KGE 100–1600 A (3N+P) is a complete range of switch-disconnectors housed in a painted sheet steel enclosure with a hinged door. The wide enclosure design allows wiring of large cross-section cables required for high-power applications and long supply lines. At the same time, the high electrical performance and short-circuit withstand capability ensure maximum safety even under very high current loads. With a protection rating of IP65 and an impact resistance of IK10, it provides maximum safety even under the harshest conditions. A large wiring space offers additional room and enables particularly easy and convenient installation. The handle is padlockable only in the OFF position (up to three padlocks). A cable gland plate with cable entries on the bottom side allows flexible installation.

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

Yes

Version as emergency stop installation

Version as reversing switch

Max. rated operation voltage Ue AC

690 V

Rated operating voltage

1000 V

Rated short-time withstand current lcw

8 kA

Rated operation power at AC-23, 400 V

85 kW

Switching power at 400 V

85 kW

Conditioned rated short-circuit current Iq

100 kA

Colour control element

Black

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Bolt connection

IP protection

IP 65 to 5 bar

series

590.KGE16005

Switch-disconnectors 100…1600 A, 3N+P
