AC switch-disconnector, 16…160 A, 3P+N

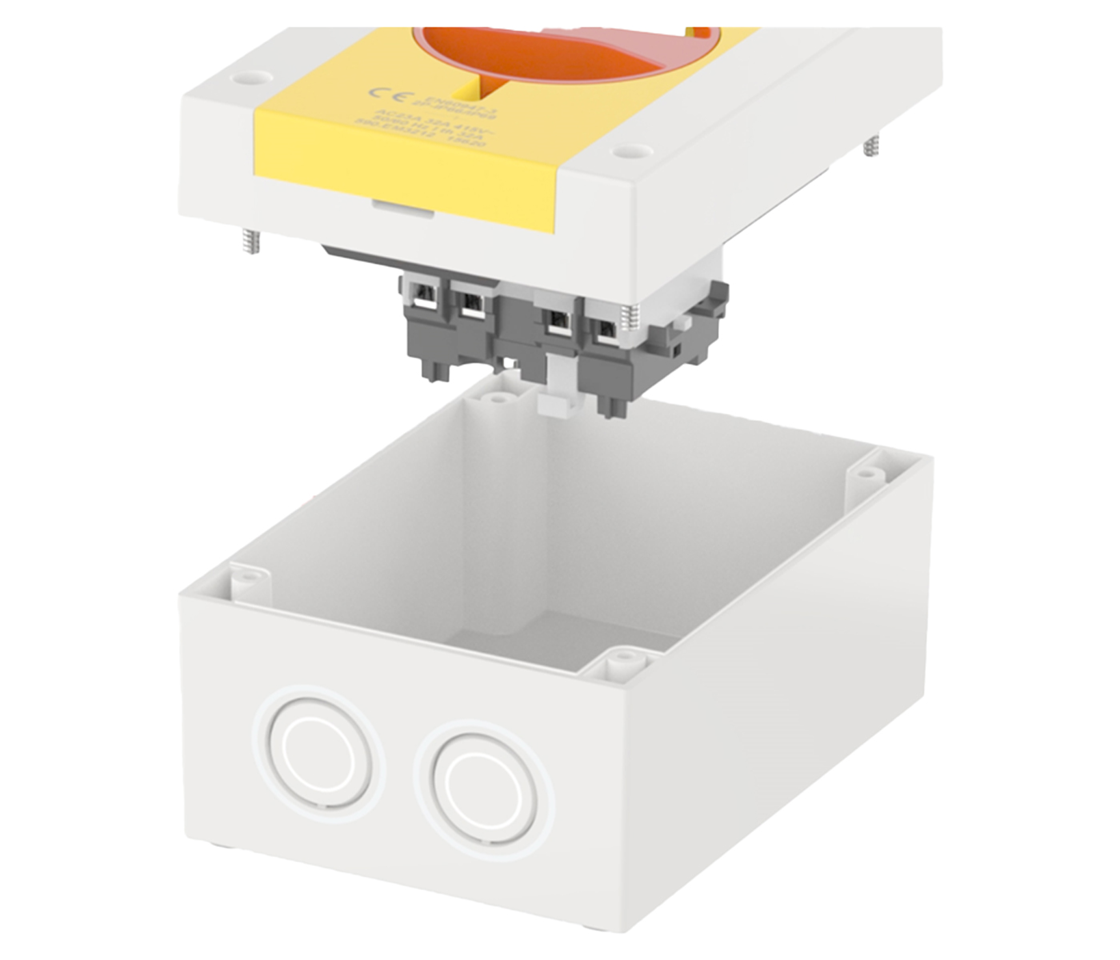

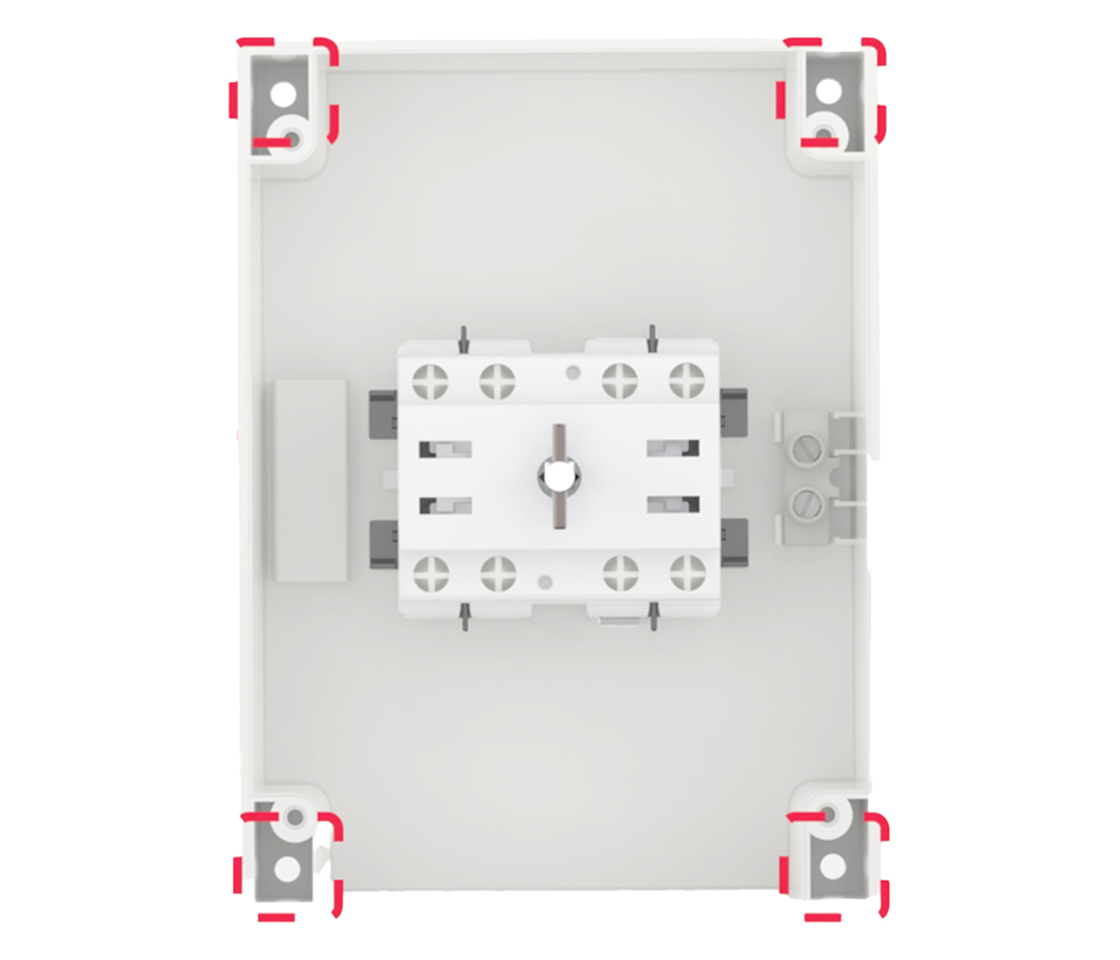

The SCAME 590.GE16–160 A (3P+N) switch-disconnector is a reliable solution for the safe switching and isolation of electrical circuits. Thanks to its compact design and robust construction, it is equally suitable as a main switch, maintenance switch, or safety switch. With a high protection rating of IP66/IP69 and an impact resistance of IK09, it ensures maximum safety even under the harshest conditions. A large wiring space provides additional room for easy and convenient installation. The recessed XXL rotary handle with integrated position indicator ensures safe operation and a clear switching status display. The handle is padlockable in the OFF position (up to three padlocks) as well as in the ON position (one padlock) – ensuring maximum operational safety. The well-designed enclosure features drilling point marks on the top side. Break-through cable entries on the bottom side allow for flexible.

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

Yes

Version as emergency stop installation

Version as reversing switch

Max. rated operation voltage Ue AC

690 V

Rated operating voltage

690 V

Rated operation power at AC-23, 400 V

9 kW

Switching power at 400 V

9 kW

Conditioned rated short-circuit current Iq

10 kA

Colour control element

Black

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

IP protection

IP 66 / 69

series

590.GE2015

AC switch-disconnector, 16…160 A, 3P+N
